Green Picture with Retrace line

First of all, unplug the set before opening to avoid electric shock.

In my case here; I found out that one of the resistor is open,one transistor is defective and cold solder of other parts of the crt and main board of the tv.

solution: replce the resistor,transistor and resolder.

see the picture:)

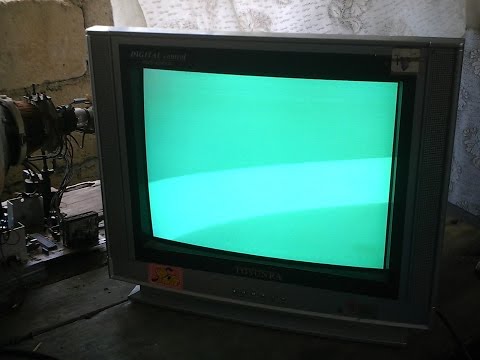

Crt pic of green tv with retrace line

Do it yourself

Green picture with retrace line

Do it yourself
